[THDY]
Click to download technical specifications
View the Technical Specifications
| Size | Capacity (kg) | Turning Diameter | *2 Shaft Information | Rotational Axis Max. Velocity (RPM) | Tilt Axis Max. Velocity (RPM) | Drive Group Code | Allowable Inertia (kgm²) | Tork System Rotary (Nm) | Tork System Tilt (Nm) |
|---|---|---|---|---|---|---|---|---|---|
| Small | 1000 | Q750, Q1000, Q1500, Q2000 | Ssh, Hsh | 15 | 10 | OPTIONS | 1750 | 1750 | 4100 |
| Small | 2500 | Q1500, Q2000, Q2500, Q3000 | Ssh, Hsh | 10 | 7,5 | OPTIONS | 2750 | 4100 | 9000 |
| Medium | 5000 | Q1500, Q2000, Q2500, Q3000 | Hsh | 7,5 | 7,5 | OPTIONS | 8000 | 9000 | 13000 |
| Medium | 7500 | Q1500, Q2000, Q2500, Q3000 | Hsh | 7,5 | 6 | OPTIONS | 12500 | 13000 | 19000 |
| Large | 10000 | Q1500, Q2000, Q2500, Q3000 | Hsh | 6 | 6 | OPTIONS | 22500 | 19000 | 29000 |
| Large | 15000 | Q1500, Q2000, Q2500, Q3000 | Hsh | 6 | 4 | OPTIONS | 40000 | 29000 | 38000 |
1 SD: Single Drive DD: Double Drive
*2 SSH: Solid Shaft HSH: Hollow Shaft
Recommended Servo Motors: ABB, COMAU, FANUC, HYUNDAI, KAWASAKI, KUKA, METALG, NACHI, OTC, PANASONIC, STAUBLI, YASKAWA

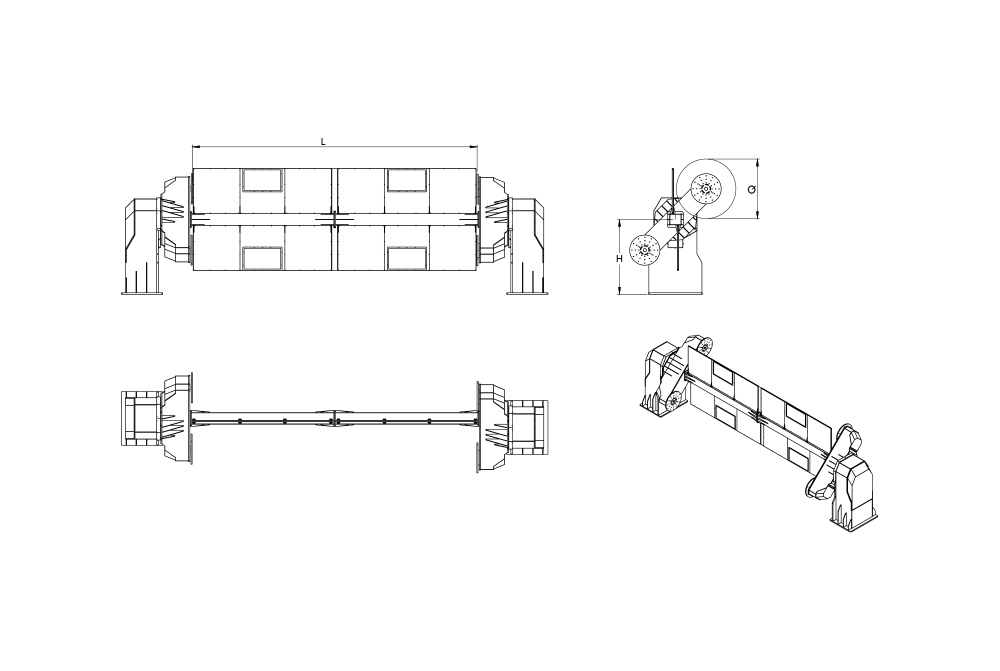

View the Technical Drawings
Customization to Fit Your Needs
Explore a range of additional features and accessories that can be incorporated to
tailor our solutions further to your specific needs.
Our products are designed to seamlessly integrate with the robotic systems you already
have in place, ensuring compatibility and ease of use.
Choose from a variety of colors to match your brand identity or project requirements,
allowing for a personalized touch
Robital solutions are crafted to be universally compatible with leading robotic brands,
providing flexibility and versatility in your automation setup.
We offer the option to customize our products with your own branding, enhancing your
company’s identity and visibility.
Our team can work with you to create bespoke designs that meet your unique
specifications, ensuring that you get exactly what you envision
